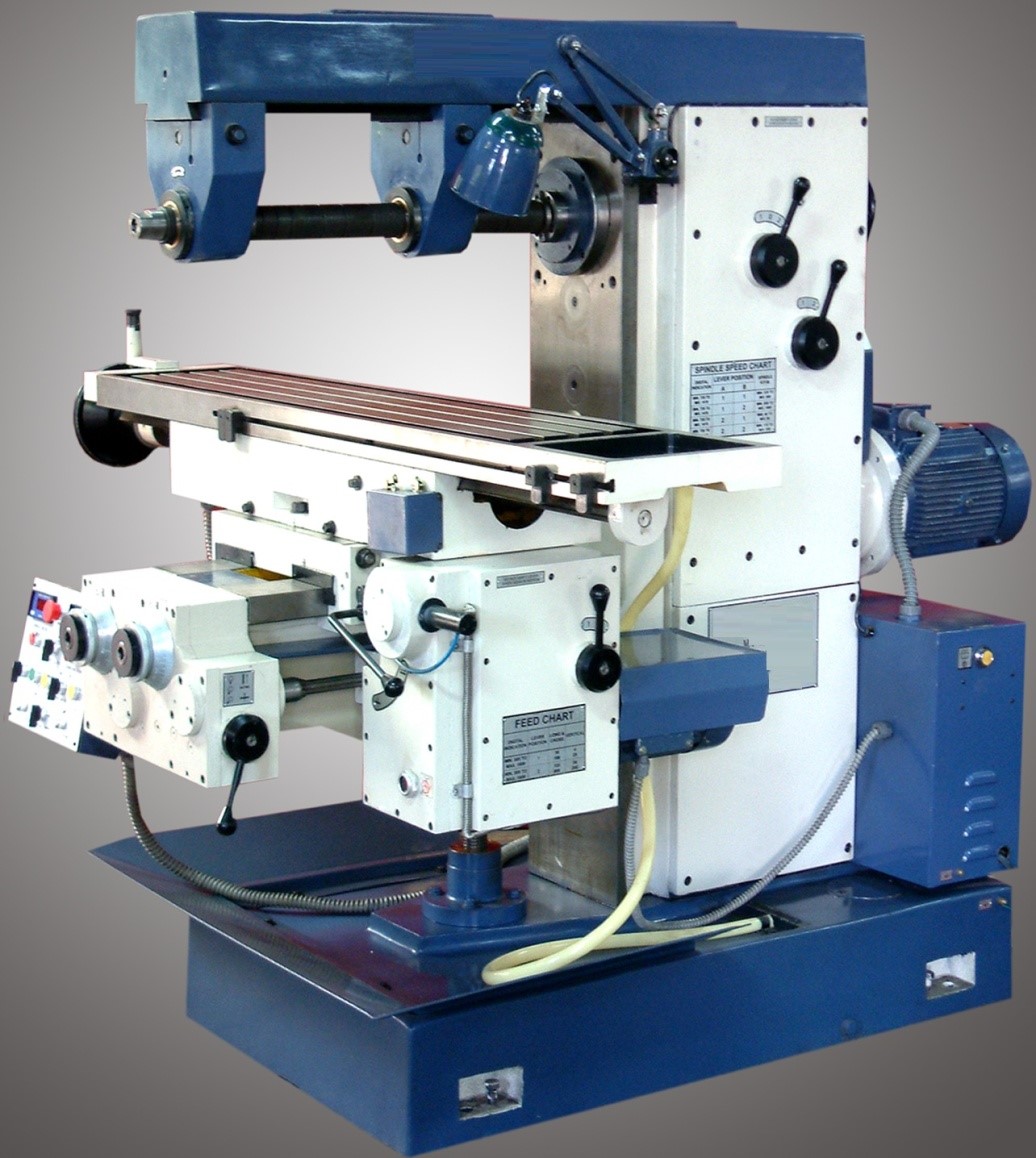

Description:
- Machine table, column, knee, base made of high grade grey cast iron conforming to IS:210
- Hardened & ground alloy steel gears and shaft in head stock and feed box
- Hardened & ground alloy steel spindle
- Highly versatile machine capable of performing complex operations
- The working table swivels ±45º
Specifications:
|
MODEL |
SU-2E |
SU-3E |
SU-4E |
|
Table |
|||
|
Table Overall Size |
1340mm x 250 mm |
1600mm x 300mm |
2000mm x 350mm |
|
Table Clamping Area |
975mm x 250 mm |
1200mm x 300mm |
1600mm x 350mm |
|
Longitudinal Table Traverse |
675mm |
975mm |
1275mm |
|
Cross Table Traverse |
230mm |
330mm |
330mm |
|
Vertical Table Traverse |
375mm |
400mm |
400mm |
|
Spindle |
|||
|
Spindle Nose Taper |
ISO-40 |
ISO-40 |
ISO-50 |
|
Spindle Speed Range |
35-1500 RPM (12 steps) |
42-1500 RPM (18 steps) |
42-1500 RPM (18 steps) |
|
Feed Range |
|||
|
No. of Feeds |
9 steps |
18 steps |
18 steps |
|
Longitudinal Feed Range |
20-800 mm/min. |
16-800 mm/min. |
16-800 mm/min. |
|
Cross Feed Range |
20-800 mm/min. |
16-800 mm/min. |
16-800 mm/min. |
|
Vertical Feed Range |
10-400 mm/min. |
4-200 mm/min. |
4-200 mm/min. |
|
Power |
|||
|
Main Motor |
3.7 kW / (O) 5.5 kW |
5.5 kW / (O) 7.5 kW |
7.5 kW / (O) 11 kW |
|
Feed Motor |
1.5 kW |
1.5 kW |
2.2 kW |
(O) = Optional
Accuracy: Geometric & Functional Accuracy as per IS: 2200
Surface milling by automatic longitudinal movement and manual vertical displacement is:
- 0.005mm/200mm on flat surface
- 0.01mm/200mm on perpendicular surface

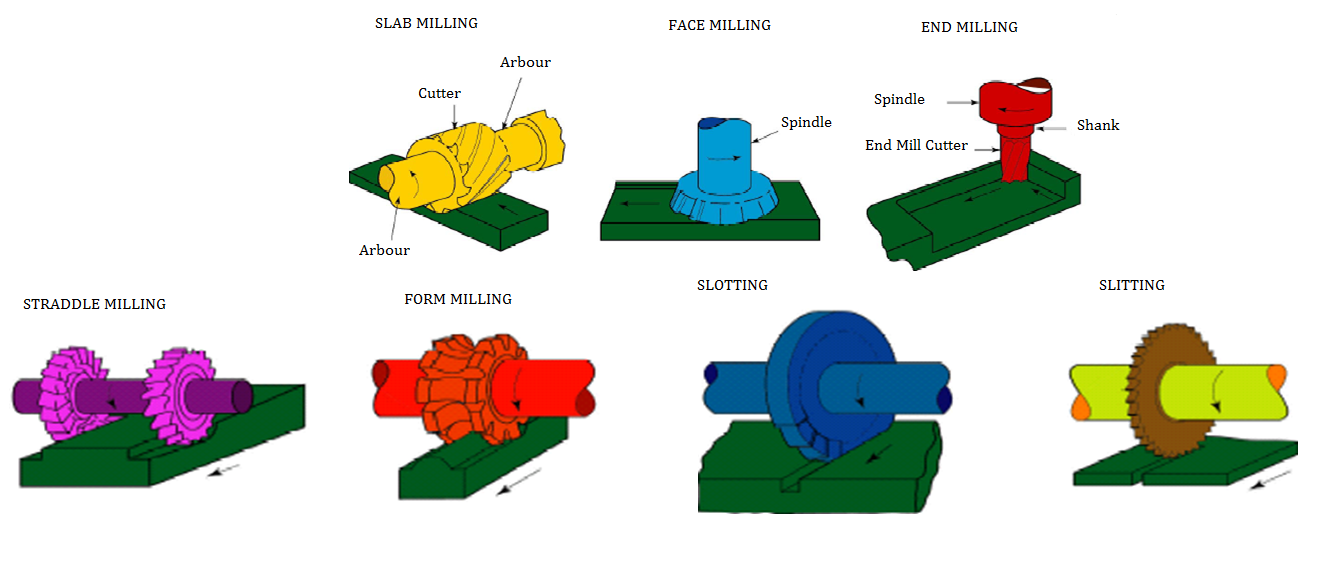

Applications:

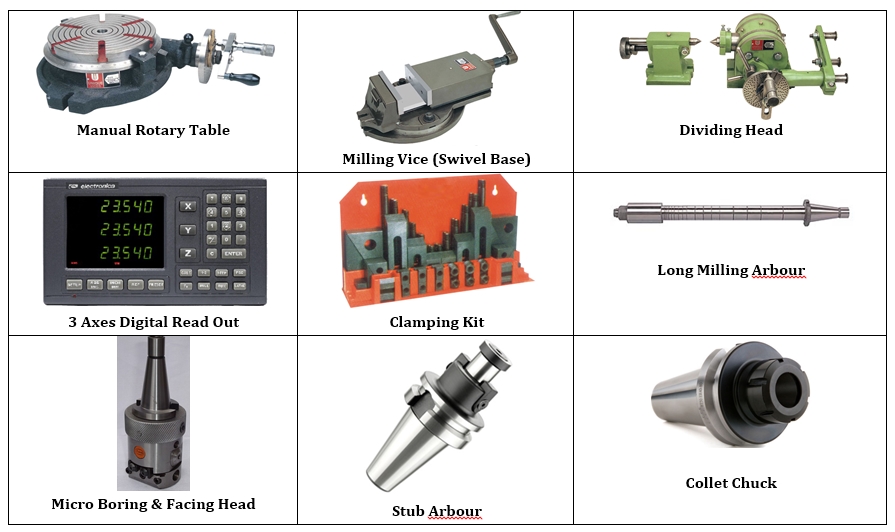

Milling Accessories:
