Description:

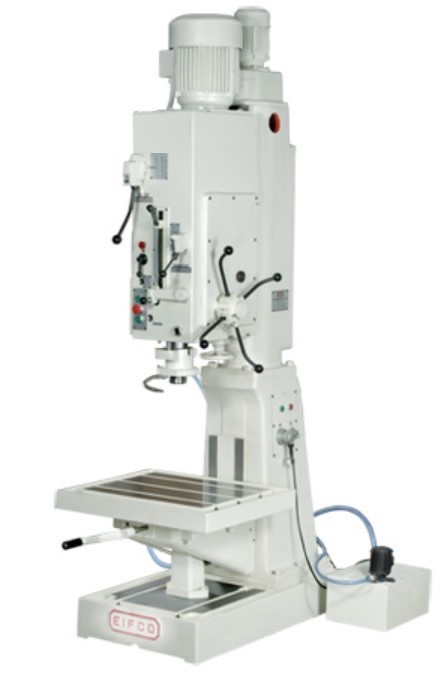

- Ultra heavy duty machine, designed to meet the demands of multiple production shifts
- Capable of being used for continuous drilling, counter sinking, reaming and tapping, without putting strain on the machine
- Machines made from high grade grey cast iron conforming to IS:210
- Case hardened & ground alloy steel spindle with run out accuracy within 10 micron
- Inbuilt tapping arrangement through electric spindle reversal mechanism
- 9 feed gearbox with overload protection through clutch system
Specifications:
|
MODEL |
BC-540 |
|
Drilling Capacity in Steel ( 60 Kg/mm2) / Cast Iron |
50 mm / 60 mm |
|
Tapping Capacity in Steel / Cast Iron |
M-39 / M-48 |
|
Spindle |
|
|
Spindle Taper |
MT-5 |
|
Spindle Traverse |
280 mm |
|
Distance between spindle and upright |
355 mm |
|
Spindle Speed Range |
32-1400 RPM (12 steps) |
|
Feed Range |
0.11 - 1.73 mm/rev (9 steps) |
|
Table |
|
|
Working Surface Area |
500mm x 630mm |
|
Max Distance between Spindle & Table |
750mm |
|
Base |
|
|
Working Surface Area |
490 mm x 530 mm |
|
Max Distance between Spindle & Base |
1200 mm |
|
Motor |
|
|
Main Motor |
3.7 / 5.5 kW (Dual Speed) |
|
Table Elevating motor |
0.75 kW |
Accessories: Drill Chuck, Drill Vice, Coolant System, Machine Lamp
